Hot China domestic uf membrane

Specifications

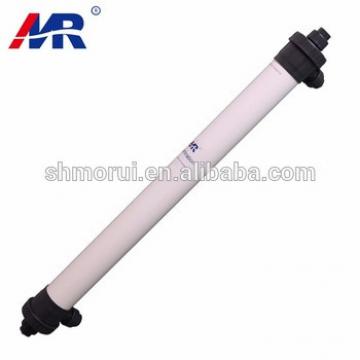

Domestic uf membrane
1.The unique design of the flow channel
reducing water resistance
2.Long life span
3.Easy to clean

Specifications( Domestic uf membrane):
1.The unique design of the flow channel,reducing water resistance
2.Long life span
3.Easy to clean

Standard offer according your application, requirement and budget directly supply,pore sizes in the range of 0.1 to 0.001 micron hollow fiber uf membrane

MR-UF Membrane ( Domestic uf membrane ) features:

1. The unique design of the flow channel, reducing water resistance

2. When backwashing the membrane surface water distribution synchronization, more thorough cleaning

3. Membrane wire fixed partition, the lowest risk of wire-breaking after long run time

4. Hydrophilic modification and improve the stain resistance

5. Continuous three-phase asymmetric structure, and enhanced the intensity of the membrane filaments

6. Reduce the pollution of the hole channel, let backwashing more easier when restoring flux

Domestic uf membrane application:

Tap water, surface water ,ground water,lake water treatment for drinking water.
Industrious Wastewater Recyling
Domestic Wastewater Treatment
Pretreatment equipment for RO system and for seawater desalination
Emergency drinking water system
Other membrane seperation,purification ,and concentration process

Project	Parameter
Model	MR4040
Design flux(L/m2/h)	40-120
Produced water pollution index(SDI15)	<3
Permeate turbidity(NTU)	<<1
E. coli removal rate (log)	>6
Virus removal rate(log)	>4
Filter type	dead-end or cross-flow filtration
Membrane materials and types	PES,PS,PVC,PAN inside out pressure
Shell and seal materials	PVC,epoxy resins
Molecular weight cutoff (dalton)	100,000
Fiber inner/ outer diameter (mm)	1.0/1.6
Effective membrane area (m­­2)	4
Max. inflow pressure (MPa)	0.3
Max. transmembrane pressure (MPa)	<0.2
Optimal permeate pressure (MPa)	0.01-0.1
Max. operating temperature (°C)	40
PH range	PES/PS 2-12, PVC/PAN 3-9
Backwash pressure (MPa)	<0.2
Backwash flow(L/m2/h)	100-200

Compared with other systems in this field, it has a lot of advantages as follows:
1. With ingenious and compact design, it takes up a small area and has a high automatic performance.
2. Clean and clear filtration water without the problems of olid smell and getting turbid.
3. Adopting automatic control system, including automatic back-washing, needing no one on duty, saving labor cost, solving the problem effectively of the traditional equipments' complicated operation and invalidation due to the operating or protecting improperly.
4. Stable performance, long life time, low running cost.
5. Environment friendly, no second pollution.
6. More than 90% water reuse rate, no natural wastage...

Morui Environmental Technology Co., Ltd. is specializing in high-tech enterprises ultrafiltration membrane and reverse osmosis membranes research and development, production, sales and services. We provide products for many trading company to export before, including Beijing a public company to Original Equipment Manufacturer, Combined with nearly 20 years of production experience, Our products have been recognized by many customers at home and abroad in the water treatment industry.

Please no hesitate contact us for more information.
